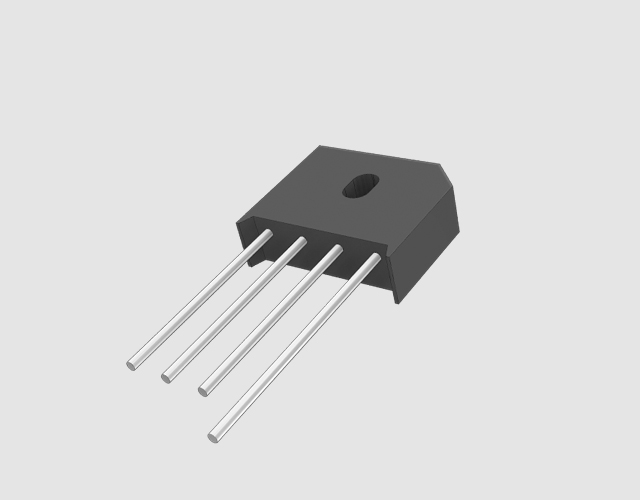

| KBL/KBU RECTIFIER BRIDGES 插件橋堆 | ||||||
| Type |
Maximum average
forward rectified
current |
Maximum
instantaneous
forwardvoltage |
Maximum
repetifive peak
reverse voltage |
Maximum
instantaneous
reverseat rated Vds | Outline | MPQ |
| IF (A) | VF(Max) (V) | Vdc (Min) (V) | IR (Max) (uA) | |||
| 6A系列 | ||||||
| KBL6005 | 6.00 | 1.10 | 50.00 | 5.00 | KBL | 1K |
| KBL601 | 6.00 | 1.10 | 100.00 | 5.00 | ||
| KBL602 | 6.00 | 1.10 | 200.00 | 5.00 | ||
| KBL604 | 6.00 | 1.10 | 400.00 | 5.00 | ||
| KBL606 | 6.00 | 1.10 | 600.00 | 5.00 | ||
| KBL608 | 6.00 | 1.10 | 800.00 | 5.00 | ||
| KBL610 | 6.00 | 1.10 | 1000.00 | 5.00 | ||
| KBL/KBU RECTIFIER BRIDGES 插件橋堆 | ||||||
| Type |
Maximum average
forward rectified
current |
Maximum
instantaneous
forwardvoltage |
Maximum
repetifive peak
reverse voltage |
Maximum
instantaneous
reverseat rated Vds | Outline | MPQ |
| IF (A) | VF(Max) (V) | Vdc (Min) (V) | IR (Max) (uA) | |||
| 6A系列 | ||||||
| KBL6005 | 6.00 | 1.10 | 50.00 | 5.00 | KBL | 1K |
| KBL601 | 6.00 | 1.10 | 100.00 | 5.00 | ||
| KBL602 | 6.00 | 1.10 | 200.00 | 5.00 | ||
| KBL604 | 6.00 | 1.10 | 400.00 | 5.00 | ||
| KBL606 | 6.00 | 1.10 | 600.00 | 5.00 | ||
| KBL608 | 6.00 | 1.10 | 800.00 | 5.00 | ||
| KBL610 | 6.00 | 1.10 | 1000.00 | 5.00 | ||
